RS485 Interface 60km Cooled Thermal Camera With Continuous Zoom Lens Oil Field

  • 1
  • 2
  • 3

Brand Name : Hope-Wish

Model Number : CTC610105

Certification : CE,FCC

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, Western Union

Packaging Details : wooden case

Price : Negotiable

NETD : 20mK(@25℃ F2.0)

interface : RS485/RS232(PELCO D, baud rate:2400bps/s)

lens : 105～1050mm continuous zoom F4.0

Resolution : 640*512

technology : cooled thermal

warranty : one year

Contact Now

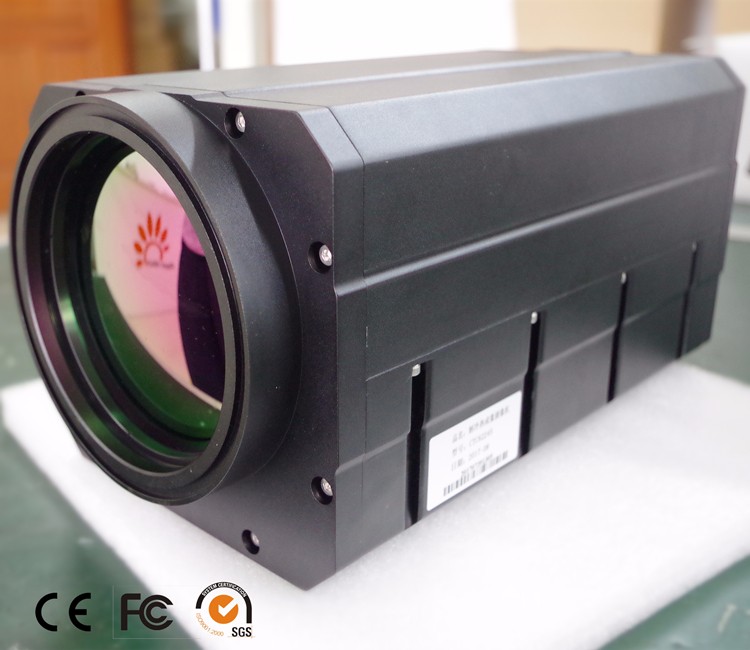

60km Ultra Long Range Cooled Thermal Camera with Continuous Zoom lens

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. The camera comes in 3 types, i.e. 20X continuous zoom, bi-fov and tri-fov.

While ensuring wide coverage, it also meets ultra long range surveillance demand with 40km detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.

Feature

  • 20mk NETD ensures premium thermal image.
  • Unique AS continuous optical zoom and 3CAM high precision mechanical engineering.
  • Superb inhomogeneous correction ensures crisp thermal image.
  • SDE image enhancement.
  • Aluminum alloy enclosure, IP 66 rated.

Application

Costal defense, harbor, oil field, river lane, airport, safe city.

Technical specification

Model CTC61530 CTC62245 CTC63570 CTC610105
Detection Vehicle:18000m Vehicle:19000m Vehicle:20000m Vehicle:22000m
Human: 11000m Human:12000m Human: 15000m Human:18000m
Identification Vehicle:7000m Vehicle:9000m Vehicle:15000m Vehicle:15000m
Human:3500m Human:4500m Human:6500m Human:9000m
Detector FPA MCT detector
Cooling Stirling cryocooler
Resolution 640×512
Pixel size 15μm X15μm
Spectral range 3.7-4.8μm, NWIR
NETD 20mK(@25 ℃)
Lens 15~300mm, 20X continuous optical zoom F4.0 22～450mm continuous zoom F4.0 35～700mm continuous zoom F4.0 105～1050mm continuous zoom F4.0
FOV 35°×28°～1.8°×1.4° 25°×18° ~1.3°×1° 16°×12° ~0.8°×0.6° 5°×4°～0.5°×0.4°
Lens control Manual/auto focus
Image processing Image enhancement: SDE;
Color: White hot/Black hot;
Brightness and contrast: AGC, adjustable;
Digital zoom: 2X, 4X
Cross: display
Correction: Shutter/Background
Interface Control: RS485/RS232(PELCO D, baud rate:2400bps/s)
Menu: OSD
Video: PAL
Power supply: DC24V
Connector: waterproof aviation connector
Environmental indicators Enclosure: aluminum alloy, sealed;
Working temp: -40°-55°
Storage temp: -40°-70°
Ingress protection: IP67
Power consumption: 15W(normal), 45W(peak)
Dimension Weight: 5kg Weight: 6.5kg Weight: 9.5kg Weight: 10kg
Dimension Dimension Dimension Dimension

250mm×120mm

×100mm

330mm×132mm

×150mm

390mm×210mm

×210mm

420mm×230mm

×210mm

* The detection distance is related to the object and environment etc. Please contact with us for further information
